Our customers, who are engaged in below fields, were greatly satisfied. We are processing a wide variety of machined components. We introduce some of them.

>Field in industry

  • • Semiconductor manufacturing equipment
  • • Electric power facility
  • • Nuclear power facility
  • • Automotive components
  • • Vacuum equipment
  • • Aerospace
  • • Instrumentation device
  • • Machine tool (working machine)
  • • Medical instrumentation
  • • Printing product
  • • Plumbing machine
  • • Food manufacturing machine
  • • Packing machine
  • • Construction machine
  • • Acoustic instrument
  • • Transportation equipment
  • • Tobacco production equipment
  • • Marine vessel development
  • etc.

Back to Page Top

>Processing parts

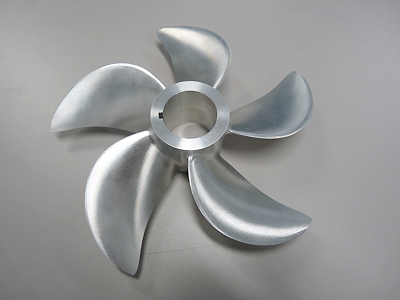

Propeller

Propeller

Material:A5056
whole surface ±0.03
Thin-walled and deep-carved cutting with a 5-axis control machine tool.
This propeller must be machined with an optimized cutter path to reduce the deterioration of surface roughness or dimensional accuracy due to chatter vibration.

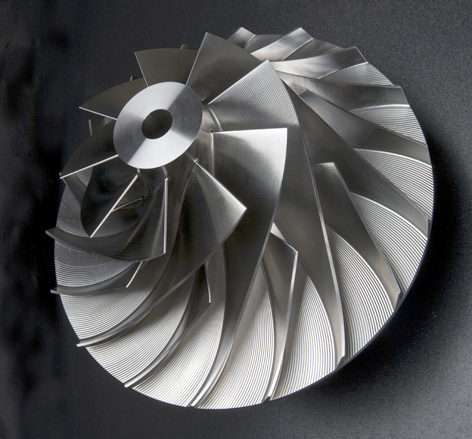

Impeller

Impeller

Material:SUS630
whole surface ±0.03
As with the propeller, this is also a cutting with a 5-axis control machine tool. Not only aluminum but also A5056 and other materials can be used for machining similar shapes.

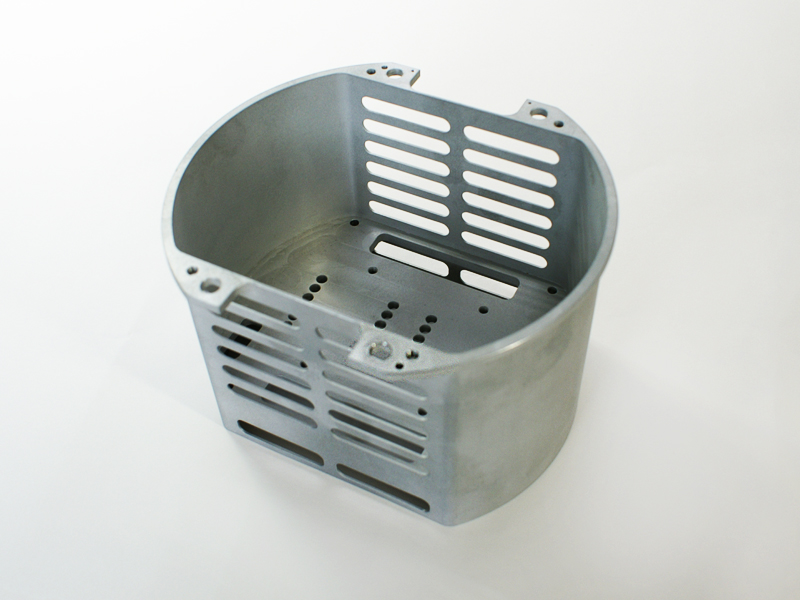

Cover(for Defense Industries)

Machining from  aluminum block

Material:A5052
Thickness:1mm
Machining from aluminum block.
This special purpose cover does not have a welded structure, requiring cutting that can produce a lighter product with higher strength.

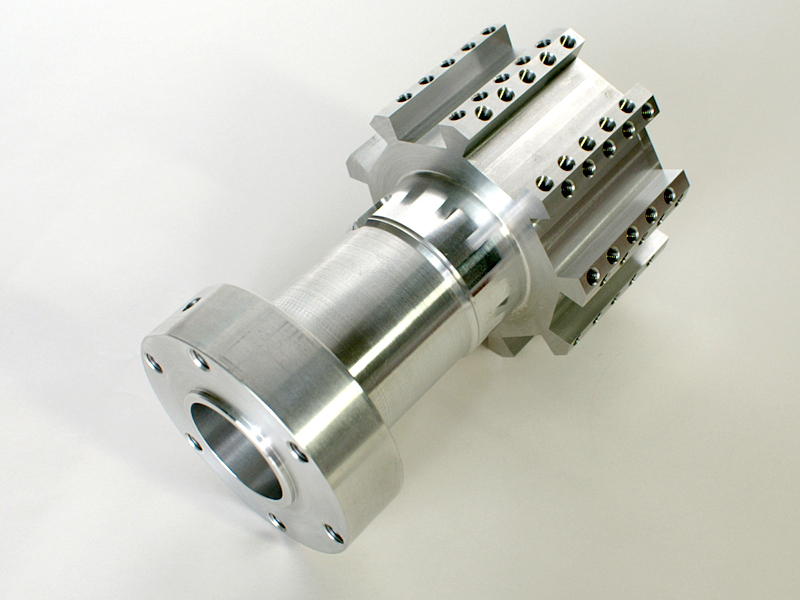

Plunger block

Combined lathe

Material:A5056
A combined lathe allows for single-process machining, bringing advantages in the accuracy and machining time.

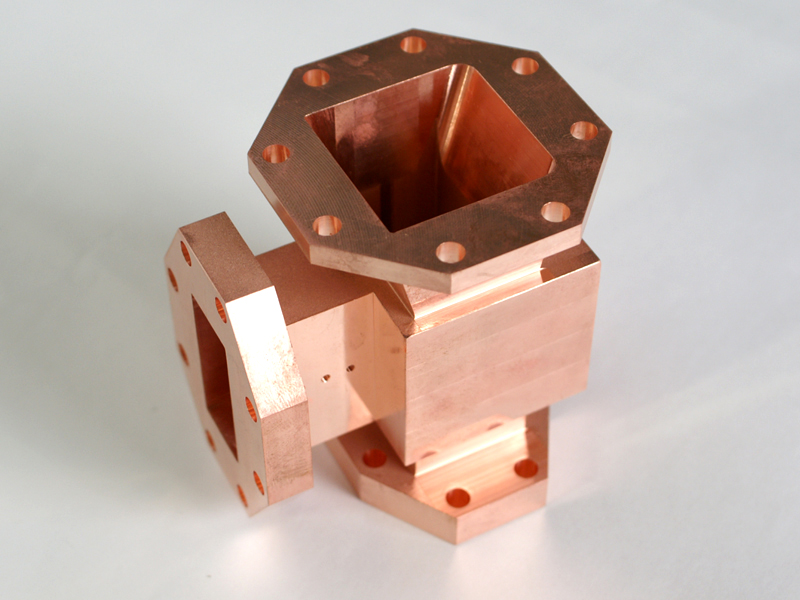

Complex shape

Complex shape

Material:Brass
After machining from six directions, a wire-electrical discharge machine is used for where the cutting edge cannot reach or where the corner radius cannot be applied.

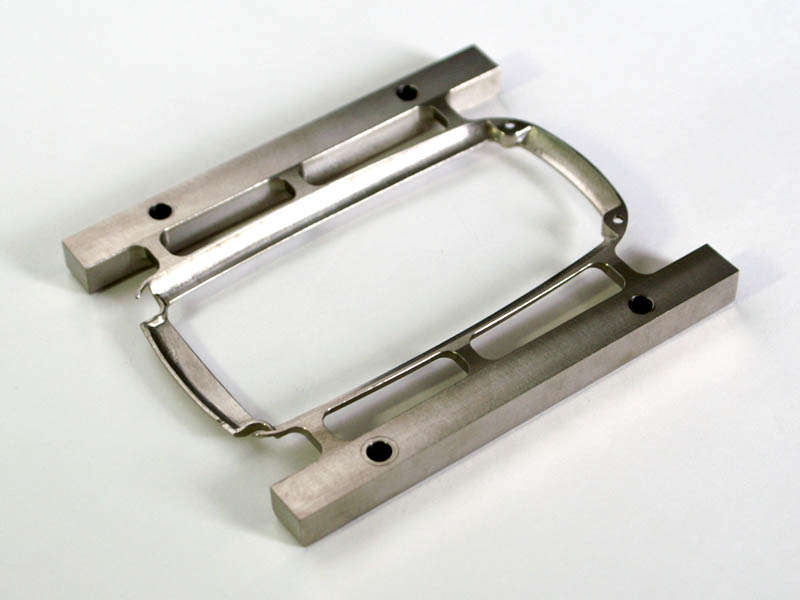

The trial product of the case of a mobile phone

The trial product of the case of a mobile phone

Material:TB340(Pure Titanium)
All machined with cutting tools
The workpiece is machined with its outer frame left like runners for plastic models first and cut off and finished at the last step because it has a free-curve shape even without a holding portion.

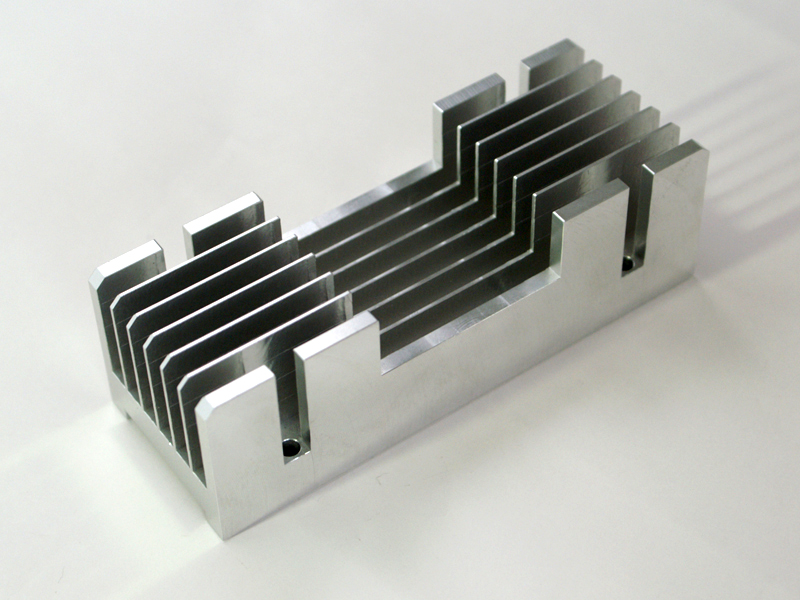

Heat sink

Heat sink

Material:A5052
Thickness:1mm
Height:25mm
Machining methods for heat sinks are chosen from cutting or wire-cutting depending on the shape.

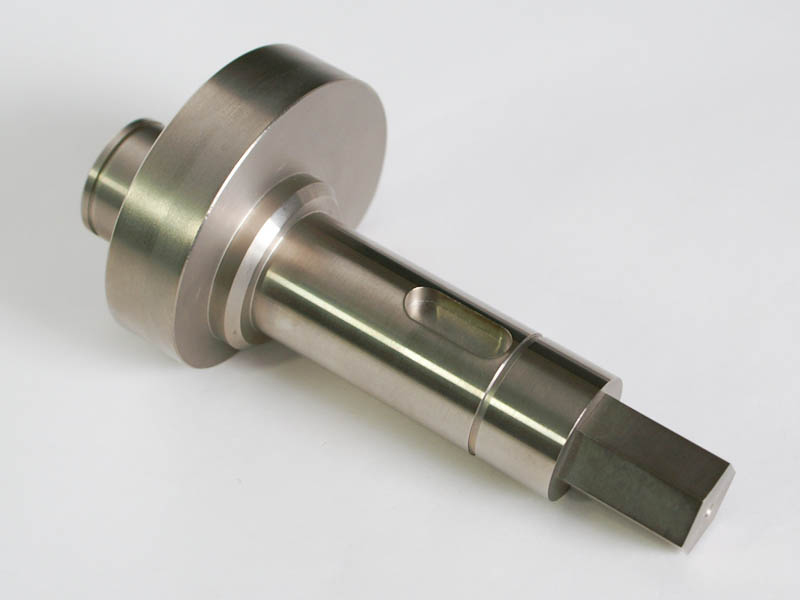

Cam

Cam

Material:Stainless Steel
Cam portion±0.01mm
We have a great deal of experience and achievement especially in producing cams so that this kind of machining is one of our specialties.

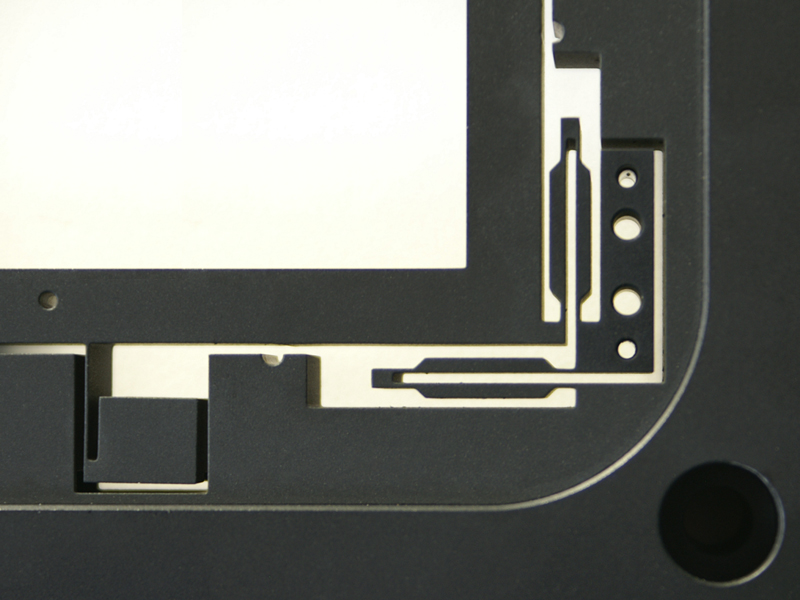

Piezo stage

Wire Cut

Material:A7075 + Black Alumite
Thin-walled wire-cutting.
The thickness of the most thinnest part is 0.3±0.02mm, resulting in deformation after machining even when an annealed material is used. However, its dimension accuracy is kept as instructed.

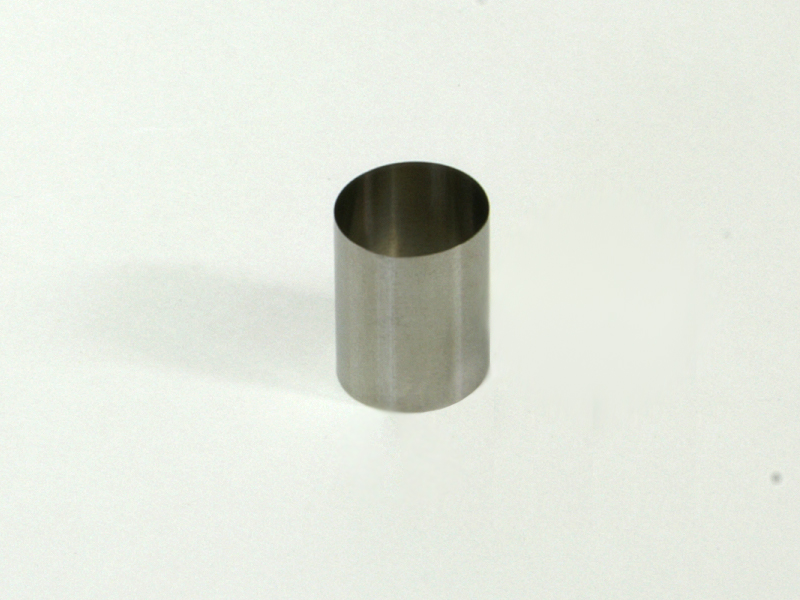

Thin pipe

Thin pipe

Material:SUS303
Thickness:0.1mm
This thin-walled pipe is machined from a round bar. The machining method is our company secret.
